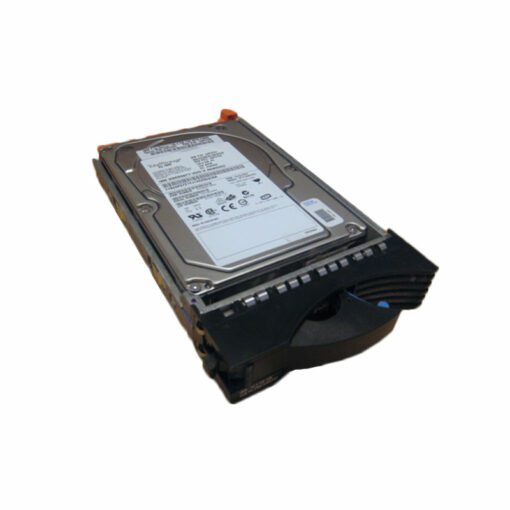

IBM 5207 32P0766 26K5208 146GB 10K Fibre Channel Hot-Swappable Hard Drive for IBM TotalStorage


SKU: IBM5207 Categories: , , Condition: Used


IBM 5207 32P0766 26K5208 146GB 10K Fibre Channel Hot-Swappable Hard Drive for IBM TotalStorage

IBM branded (non-generic) 146.8GB 10K FC HDD for your IBM TotalStorage or FAStT series need. The IBM 5207 is a 146.8GB 10k RPM FC hard drive for use specifically with IBM TotalStorage or FAStT series devices. Whether you’re upgrading your IBM enterprise storage or simply looking for a replacement hard drive, we have what you need. If you don’t see the part listed that you’re looking for, please use our Contact Us form; as we have many parts in inventory that are not listed. Please note that all IBM hard drives, systems and parts are used / refurbished, fully-tested, and backed by a 60 day warranty.

IBM 5207 146.8GB 10K Fibre Channel Hard Disk Drive Features

The IBM 1740-5207 FC Drive is a 2 Gb/sec E-DDM Fibre Channel Drive with an interface speed of 10,000 rpm and 146.8GB of raw capacity, used to add additional SAN storage capacity to your existing IBM DS4000, IBM FAStT series enterprise storage array, or other compatible device. An IBM 1740-5207 FC drive will deliver high speed and high performance for your SAN enterprise storage network.

IBM 5207 32P0766 26K5208 146GB 10K Fibre Channel Hot-Swappable Hard Drive for IBM TotalStorage Specifications

Fibre Channel
146GB, 2 GB/s
10,000 RPM
Other PN
26K5208 17R6336 1722-5207 1740-5207
Form Factor
3.5 inch
EXN1000, DS4000 series products: the DS4300 Model 60U/60X Midrange Disk System (172260U, 172260X); DS4300 Model 6LU/6LX Midrange Disk System (17226LU, 17226LX); DS4000 EXP700 Fibre Channel Expansion Storage Unit (17401RU, 17401RX); DS4000 EXP710 Fibre Channel Expansion Storage Unit (1740710) FastT200/500


IBM Fibre Channel Hard Drives

The IBM Fibre Channel (FC) Disk Drive option increases the storage capacity of IBM TotalStorage DS4000 Series (FAStT) Storage Servers to deliver configurations greater than 32TB. This drive, when used with the fully configured, 14-bay, DS4000 Series (FAStT) Storage Expansion Units, can deliver a supporting more than 2TB of high-performance storage in 3U of rack space. The IBM fibre channel disk drive option can be used with the FAStT EXP500 Storage Expansion Unit (3560-1RU/1RX) and the FAStT200 Storage Server (3542) operating at 1Gbps FC speed, increasing the capacity of these FAStT family models as well.

IBM fibre channel hard drives are provided with the speed, reliability, and functionality needed for today’s systems. All IBM Hard Drives are designed and tested for compatibility and interoperability in the systems for which they are intended in order to provide the immediate flawless integration expected from IBM storage solutions.

Note: In configurations with mixed storage expansion enclosures, all storage expansion enclosures on a fibre loop must be operating at the same interface speed. Ensure that the speed of the E-DDM Customer Replaceable Unit (CRU) you are adding is supported in the storage subsystem. For example, do not install a 2 Gbps E-DDM CRU in a storage subsystem that supports only 4 Gbps E-DDMs.

Additional information

Weight 2.25 lbs
Dimensions 9 × 4.5 × 1 in


Drive Type

Fibre Channel (FC)





Form Factor

3.5 inch

Storage Capacity (GB)
