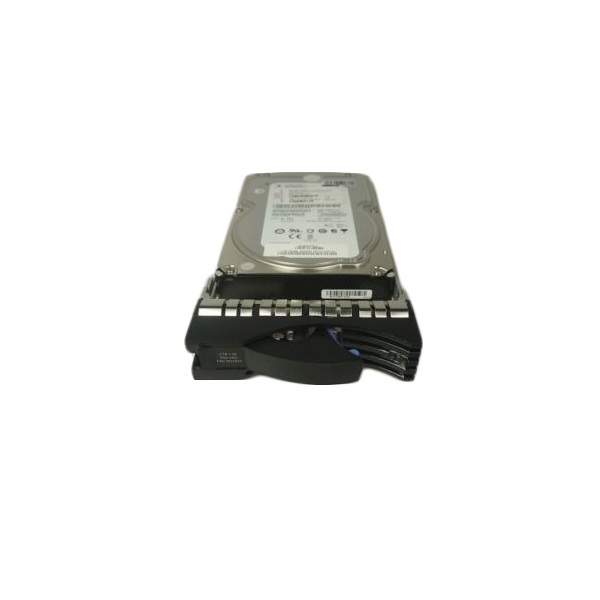

00Y2471 IBM 2TB 7.2K 6Gbps NL-SAS 3.5″ HDD for V3700 – 00Y2424, 00Y5715, 2072-ACKA


SKU: 00Y2471 Categories: , , Condition: Used


The IBM 00Y2471 is a 2TB 7.2k RPM NL-SAS hard drive for use specifically with IBM Storwize V3700 storage systems. Whether you’re upgrading your IBM enterprise storage or simply looking for a replacement hard drive, we have what you need. If you don’t see the part listed that you’re looking for, please use our Contact Us form; as we have many parts in inventory that are not listed. Please note that all IBM hard drives sold by SPS Pros are used, fully-tested, and backed by a 60 day warranty.

The IBM 00Y2471 2TB 7.2K 6Gbps NL-SAS 3.5″ HDD is also known by part numbers 00Y2424, 00Y5715, 2072-ACKA, and others shown below.

IBM 00Y2471, 00Y2424, 00Y5715, 2072-ACKA 2TB 7.2k 6Gbps NL-SAS 3.5″ HDD Technology

NL-SAS drives have a SAS interface, but head, media, and rotational speed of traditional enterprise-class SATA drives, so they cost less than other SAS drives. This interconnect technology is capable of communicating at speeds of 6Gbps. Increase your available storage with the IBM 00Y2471 2TB 7.2k 6Gbps NL-SAS hard drive. When compared to SATA, NL-SAS drives have the following benefits:

  • Dual ports allowing redundant paths
  • Ability to connect a device to multiple computers
  • Full SCSI command set
  • No need for using Serial ATA Tunneling Protocol (STP), which makes it possible for SATA HDDs to be connected to a SAS HBA
  • No need for SATA interposer cards, which are needed for pseudo–dual-port high availability of SATA HDDs
  • Larger depth of command queues

IBM 00Y2471, 00Y2424, 00Y5715, 2072-ACKA 2TB 7.2k 6Gbps NL-SAS 3.5″ HDD Features

  • 2 million hours MTBF
  • Dual Stage Actuator (DSA) and Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
  • High-performance 6Gb/s SAS for reliable data throughput
  • 24×7 accessibility for enterprise-class, capacity-optimized applications

IBM 00Y2471, 00Y2424, 00Y5715, 2072-ACKA 6Gbps NL-SAS 3.5″ HDD Applications

  • Cloud storage
  • Massive Scale Out (MSO)
  • Data warehousing & mining
  • Disk-to-disk backup & archiving
  • RAID arrays
  • Network Attached Storage (NAS)

IBM 00Y2471, 00Y2424, 00Y5715, 2072-ACKA 2TB 7.2k RPM NL-SAS HDD Specifications

NL-SAS 6.0Gbps
7,200 RPM
Form Factor
Other PN
00Y2424, 00Y5715, 2072-ACKA, HUS723020ALS640, 0B26317
System Compatibility
V3700 system base chassis (2072L2C) and expansion chassis (2072LEU)

Additional information

Weight 2.25 lbs
Dimensions 9 × 4.5 × 1 in
Drive Type






Storage Capacity (GB)




Form Factor

3.5 inch
