VX-DS07-010 EMC 1TB NL-SAS 3.5″ Hard Drive – 005049408, 005049495, 005050286


SKU: VX-DS07-010 Categories: , , Condition: Used

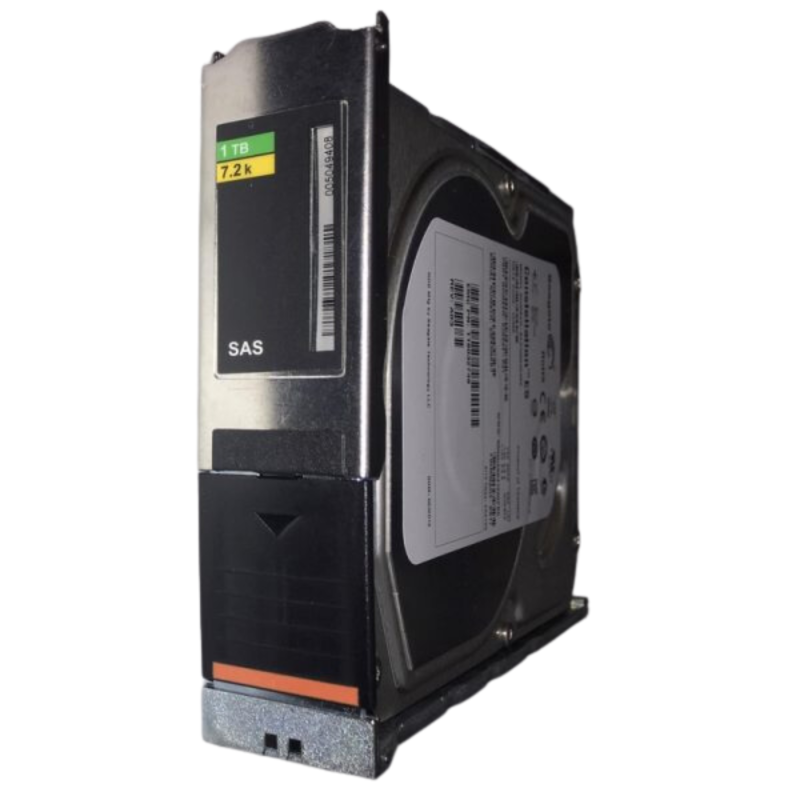

Maximize the storage capacity of your EMC VNX series SAN. The EMC VX-DS07-010 is a 1TB NL-SAS 7,200 RPM hard drive. All EMC hard drives sold by SPS Pros are previously used, fully tested, and backed by a 60-day warranty against defects.

The VX-DS07-010 is also known as part numbers 005049408, 005049495, 005050286, 005050738 & 005050138.

EMC VX-DS07-010 1TB NL-SAS Hard Drive Technology

NL-SAS drives are a cross between SAS and SATA drives featuring a SAS interface, but head, media, and rotational speed of traditional enterprise-class SATA drives, so they cost less than other SAS drives. Being able to communicate up to speeds of 6Gbps, NL-SAS is the technology of choice in EMC storage systems. Increase your available storage with the EMC VX-DS07-010 1TB NL-SAS hard drive. When compared to SATA, NL-SAS drives have the following benefits:

  • Dual ports allowing redundant paths
  • Ability to connect a device to multiple computers
  • Full SCSI command set
  • No need for using Serial ATA Tunneling Protocol (STP), which makes it possible for SATA HDDs to be connected to a SAS HBA
  • No need for SATA interposer cards, which are needed for pseudo–dual-port high availability of SATA HDDs
  • Larger depth of command queues

EMC VX-DS07-010, 005049408, 005049495, 005050286, 005050738 & 005050138 1TB NL-SAS HDD Applications

EMC NL-SAS HDD VX-DS07-010 is best suited for higher-capacity environments to help realize cost and capacity benefits. Sequential access applications have a tendency to maximize any caching advantages of the storage system, and take advantage of the higher density NL-SAS hard disk drives. In these applications, the speed at which the drive can transfer data from the platter has the greatest effect on overall performance. Thus, medium-to-large block and sequential I/O applications can reap the greatest benefits from the drive’s higher area-bit densities.

Some popular types of applications for the 005049408 / 005049495 / 005050286 / 005050738 / 005050138 / VX-DS07-010 EMC 1 TB 7,200 RPM NL-SAS drives are:

  • Disk-to-disk backup
    • Disk backup using traditional backup software. EMC arrays are tested and supported with most major backup applications.
    • Improves backup and restore performance when compared to tape.
  • Large application datasets
    • Some applications, like seismic data interpretation, government intelligence, and life sciences research are immediately written out to tape due to their large size. When the tests need to be rerun, the data must be reloaded from tape, and then rerun. Now the information can stay online with EMC NL-SAS drives and businesses can improve their operational efficiency and time to market.

EMC VX-DS07-010, 005049408, 005049495, 005050286, 005050738 & 005050138 1TB NL-SAS HDD Specifications

7200 RPM
Other PN
005049408, 005049495, 005050286, 005050738, 005050138
Form Factor
3.5″ with tray
Disk Shelf Compatibility
Platform Compatibility
VNX5500, VNX5700, VNX7500

Additional information

Weight 2.25 lbs
Dimensions 9 × 4.5 × 1 in


Storage Capacity (GB)






Form Factor

3.5 inch
